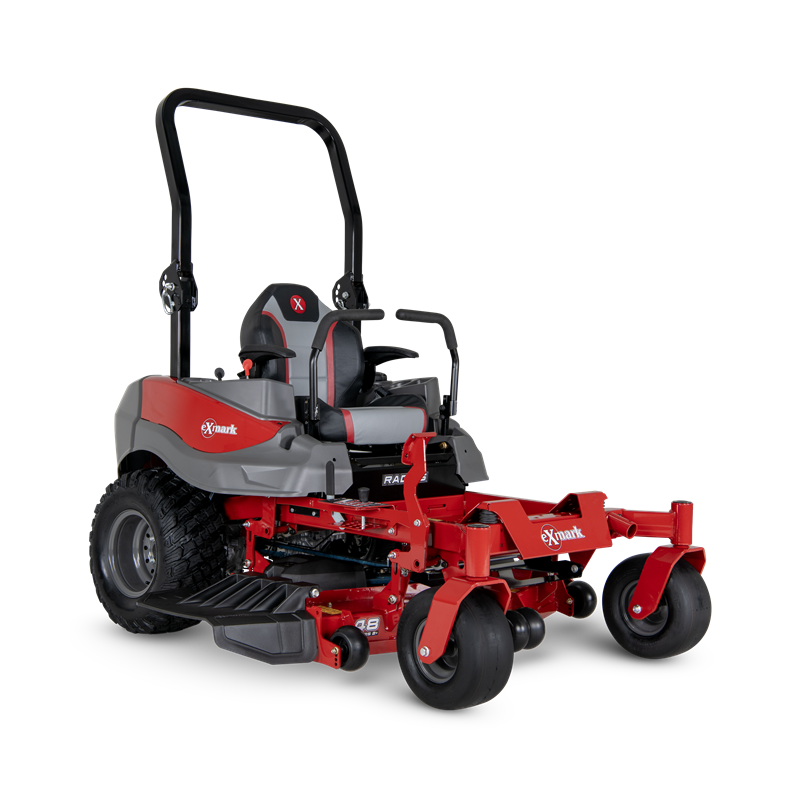

With the performance you expect from Exmark, new features and a fresh new look, the Radius E-Series is the right choice for home and acreage owners looking for a commercial-grade mower without breaking the bank. Choose from 48-, 54-, or 60-inch Exmark Series 2+ cutting decks and a wide range of available accessories for maximum versatility. And with new Kawasaki V-twin engine options, Radius E-Series models deliver more performance per dollar than ever before. Check out the Radius S-Series and Radius X-Series models if you’re looking for even more features and productivity. (RD models coming in 2026.)
Surcharge may apply. See details.
UPC
193308243740
Width / Cutting Deck
48″
Drive
Hydro-Drive
Starter
Electric
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks
.375″ thick caster yoke arms.
Front Caster Tires
13 x 6.5-5 smooth-tread, pneumatic.
Drive Tires
22 x 10-10 K3012
Safety Package
Operator Presence Controls (OPC) and drive system interlock.
Parking Brake
Automatic-actuated pawl brake.
Tractor Frame
Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 25mm (.98″) diameter spindle shaft.
Cup Holder
Yes
Electrical
12 volt battery with 15-amp alternator
Standard Features
Hour meter, cup holder, hitch
Seat
Deluxe, two-tone, bolstered seat with flip up armrests and integral safety switch
Optional Features
Hour meter and seat armrests
Engine Brand
Kawasaki
Transmission Brand
Hydro-Gear
Transmission Speeds
Infinitely Variable
Engine Model
FR691
Engine Displacement
691
Engine Series
V-Twin
Fuel System
Carbureted
Speed
Infinitely variable speed selection from 0–8.0 mph forward, 0–4.0 mph reverse
Transmission
Hydrostatic
Engine Spec
AS43-R
Engine Speed
3,600 rpm
Air Filter
Standard Engine Manufacturer’s air filter
Fuel Capacity
7-gallon single fuel tank with single fill location
Drive Description
Two Hydro-Gear ZT-2800 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir
Fuel Type
Gas Carbureted
PTO Engagement
Electromagnetic 105-ft-lb clutch
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Float gauge
Deck Lift
Foot pedal, single point drop pin HOC
Carb Compliant
No
ROPS
2-post foldable ROPS standard with seat belt.
Deck Style
Floating Deck
Deck Style Description
Series 2 plus fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch.
Deck Construction
7-gauge top that is formed and welded, 12-gauge side skirt and .375″ welded bumper. 4 point suspension.
Cutting Heights
1.5″ to 5.0″ in 0.25 increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 Blades at 16.50″ Length
Width
60.6″
Height
73.7″
Curb Weight
804
Length
83.9″
